XXA-45-360D
DC12V 24V UCS1903 GS8206 UCS8904 RGB RGBW amusemnt pixel light 45mm cabochon (XXA-45-360D)
DC12V 24V UCS1903 GS8206 UCS8904 RGB RGBW amusemnt pixel light 45mm cabochon

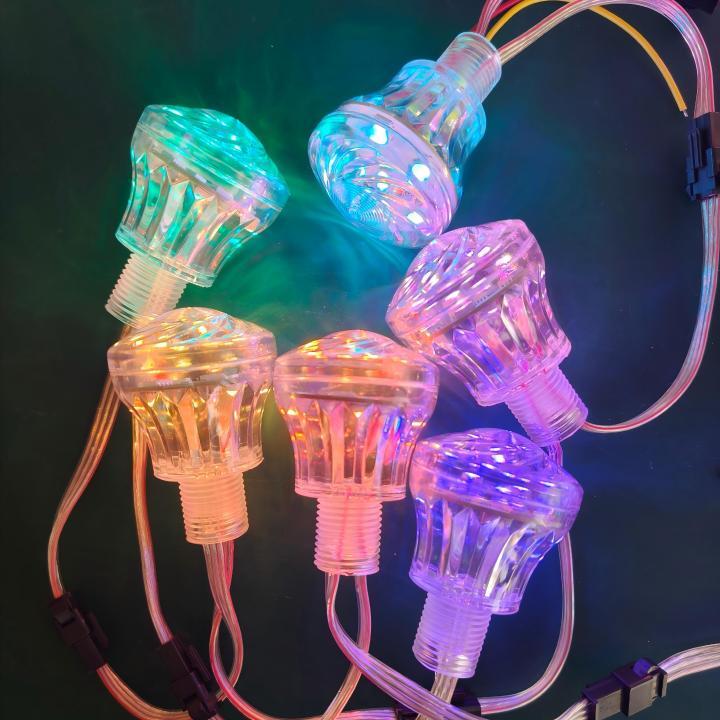

Introducing the 45mm Cabochon Pixel Light (XXA-45-360D). Offers bright 2-sided illumination (12 LEDs) with a 45mm diameter. Features versatile 19mm mounting, DC12V/24V operation, and options for connectors, caps, ICs (UCS1903, etc.), and LED types (RGB/RGBW). Ideal for diverse indoor/outdoor projects.

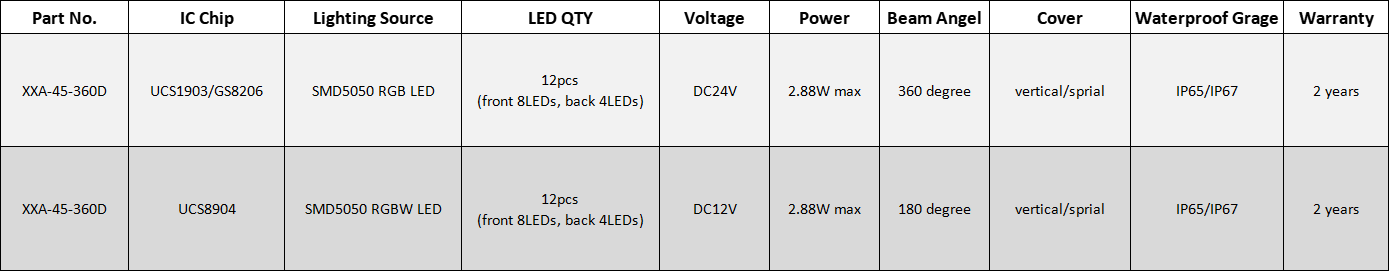

Specification:
Product Name: 45mm Cabochon Pixel Light
Part Number: XXA-45-360D
Diameter: 45mm
Illumination: 2-sided (8 LEDs front, 4 LEDs back)
Mounting Hole: 19mm (20mm acceptable)
Operating Voltage: DC12V / DC24V
Power Supply Recommendation: Power every 20-40 units
Connectors: Indoor: JST Non-waterproof/Outdoor: Waterproof (Clear or Black)
Cable Length: Customizable
Cap Options: Spiral / Straight
IC Options: UCS1903 (Default), GS8206, UCS8904, DMX ICs
LED Type Options: SMD5050 RGB, SMD5050 RGBW

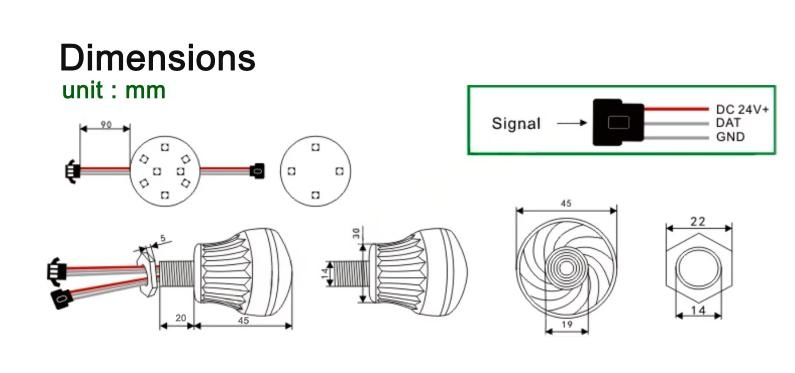

Dimensions (mm):
Features of 45mm Cabochon Pixel Light:
1. Impressive 45mm Cabochon Design:
Features a large 45mm diameter dome, providing a wide, bright, and captivating light output. The design includes 8 LEDs on the front and 4 LEDs on the back for enhanced 2-sided illumination.
2. Versatile Voltage Options:
Operates reliably on both DC12V and DC24V power supplies, offering flexibility for various project requirements.
3. Efficient Power Management:
Designed to minimize voltage drop, ensuring consistent brightness across your installation. We recommend using a dedicated power supply for every 20-40 units.
4. Wide Compatibility with ICs:
Default: UCS1903 (single data wire)
Alternatives Available: GS8206 (supports dual data wires for redundancy), UCS8904 (for RGBW effects), and DMX compatible ICs.
5. Choice of LED Type:
Standard: SMD5050 RGB LEDs for classic colorful effects.
Optional: SMD5050 RGBW LEDs for expanded color possibilities, including pure white.
6. Durable Mounting:
Features a standard 19mm mounting hole (20mm also acceptable for installation ease).
7. Flexible Connector Options:
Indoor Use: JST Non-waterproof connector.
Outdoor Use: Choose from clear or black Waterproof connectors for reliable performance in exposed conditions.
8. Customizable Cable Length:
Cables can be tailored to your specific installation needs.
9. Cap Style Options:
Select between a Spiral or Straight cap design to complement your aesthetic.
Application for 45mm Cabochon Pixel Light:
Amusement parks and attractions
Themed entertainment environments
Museums and exhibitions
Retail displays and window lighting
Festivals and outdoor events
Architectural accent lighting
Signage and letter lighting
Decorative lighting projects
