XXA-D35

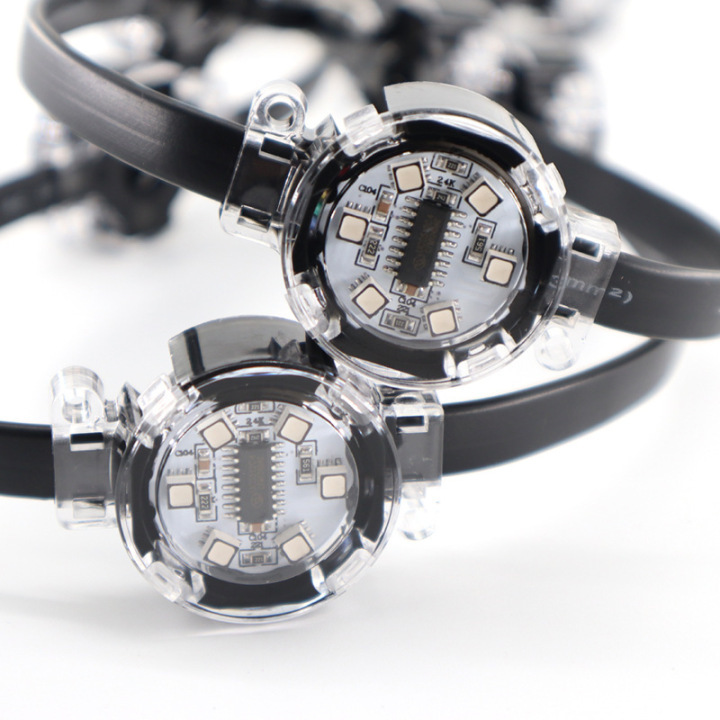

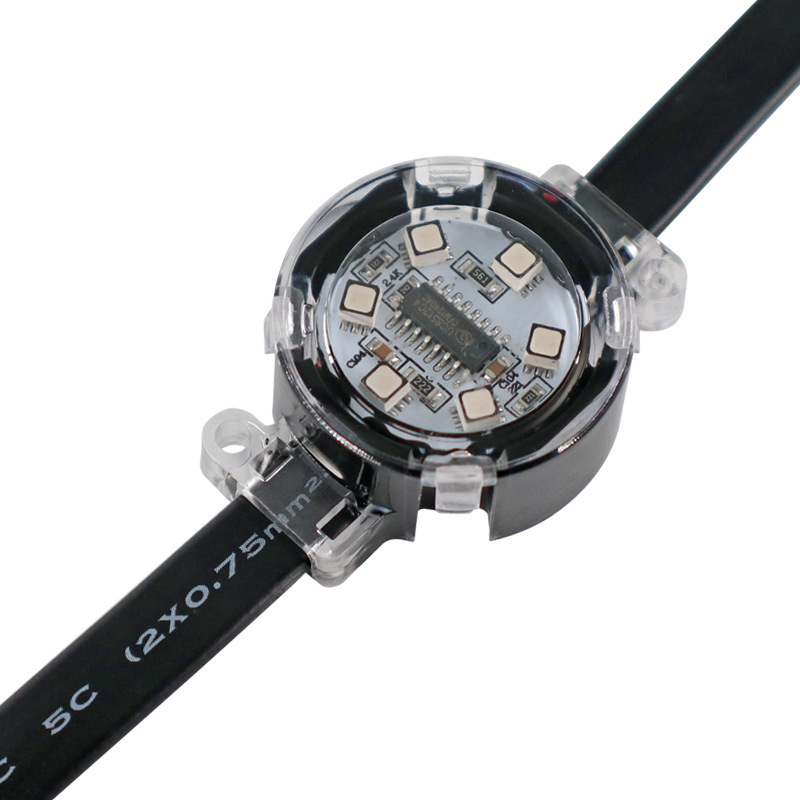

DC24V custom mold 35mm outdoor waterproof pixel module point light (XXA-D35)
DC24V custom mold 35mm outdoor waterproof pixel module point light
This outdoor pixel module light features a custom mold design, 35mm size, and 6 high-efficiency SMD3535 RGB LEDs (also can be customized). Operates reliably on DC24V and supports precise DMX512 control for dynamic effects. Fully waterproof, perfect for durable exterior lighting installations.
Features of 35mm outdoor waterproof pixel point light:
1. This is almost impossible to find the same model on the market, because it's a custom mold;
2. The pixel module diameter is 35mm, 6pcs SMD3535 RGB LED, also can be customized;
3. SPI/DMX protocol you can choose, so the chip can be customized.

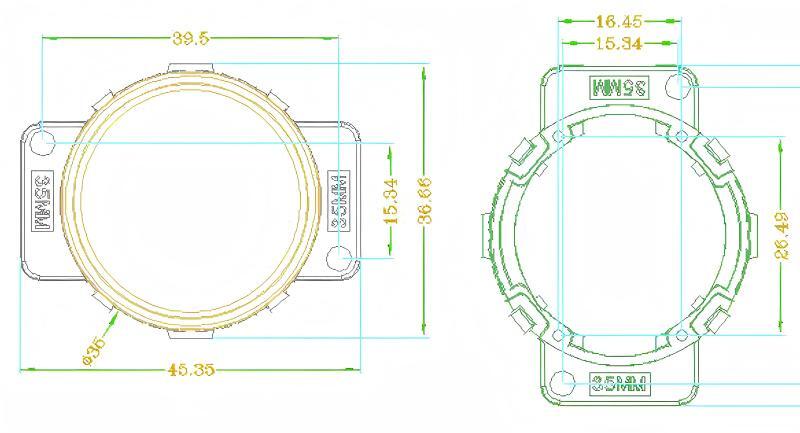

Dimension (mm):
Installation Modes of 35mm outdoor waterproof pixel point light:

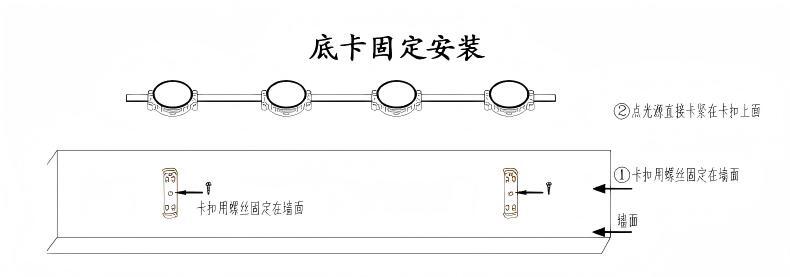

Mode 1: Base Clip Fixed Installation
1. Secure the clips to the wall with screws.
2. The point light source is directly clipped onto the clips.

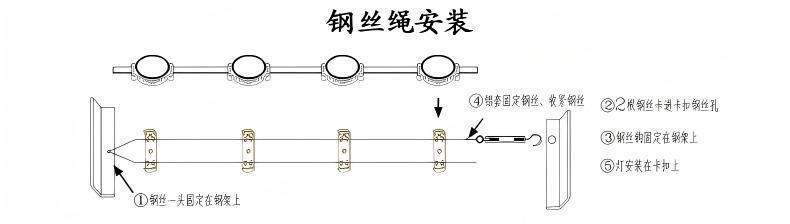

Mode 2: Wire Rope Installation
1. Fix one end of the wire to the steel frame.
2. Insert two wires into the wire holes of the clips.
3. Fix the wire hooks to the steel frame.
4. Secure the wires with the aluminum sleeve and tighten them.
5. Install the light on the clips.

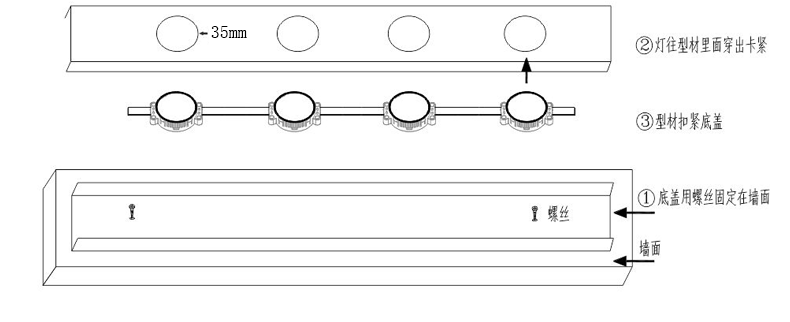

Mode 3: Through-hole installation
1. Secure the bottom cover to the wall with screws.
2. Insert the light fixture into the profile and tighten it.
3. Secure the profile to the bottom cover.
Applications of 35mm outdoor waterproof pixel point light:
Dynamic facades – Pixel-mapped animations, brand displays, or synchronized event lighting;
Contour highlighting – Crisp white (2700K–6500K) or colorful edge accents;
Media walls – High-density video displays with flicker-free 4kHz refresh;
Landmarks/art – Smooth 16-bit gradients, avoiding low-brightness color shifts;
Smart urban lighting – Programmable schedules for energy savings.
