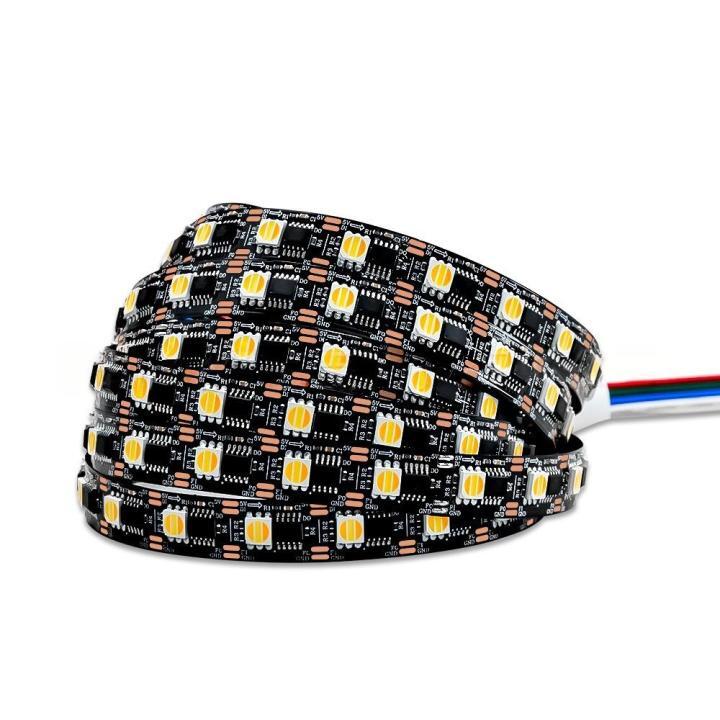

DC5V12V24V UCS7604 5050 SMD 60LED/M digital addressable WWA RGBW Flex led strip Series

DC5V 12V 24V UCS7604 5050 SMD 60LED/M digital addressable WWA RGBW Flex led strip Series

The UCS7604 is a 4-channel, 65,536-level gray scale LED driver control IC featuring smart bad-point continuation. It integrates an MCU digital interface, data latch, and LED high-voltage drive circuits. Controlled by an external MCU, it enables individual brightness adjustment and cascading for outdoor large-screen color matrix lighting control.

Features of UCS7604 WWA RGBW Flex led strip:

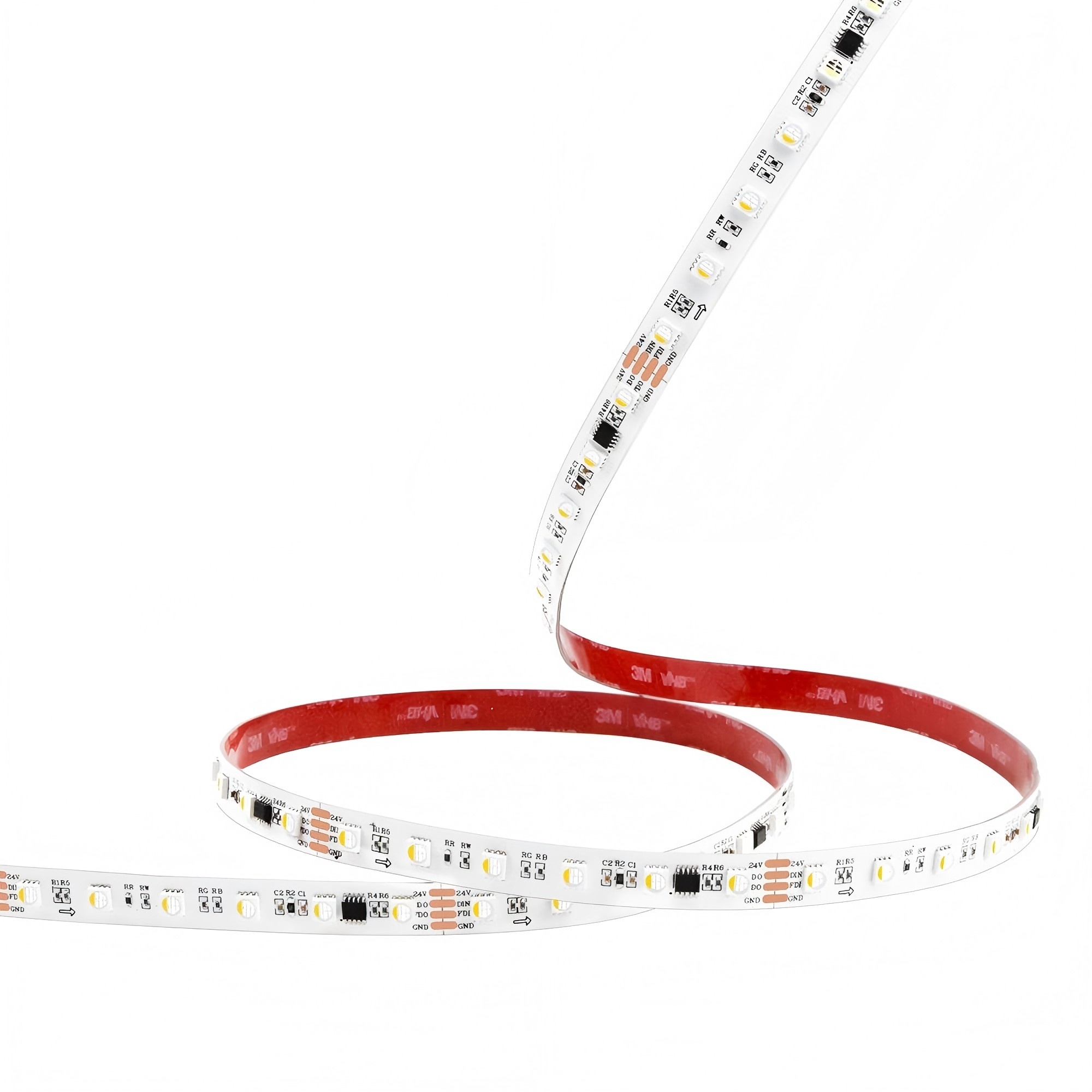

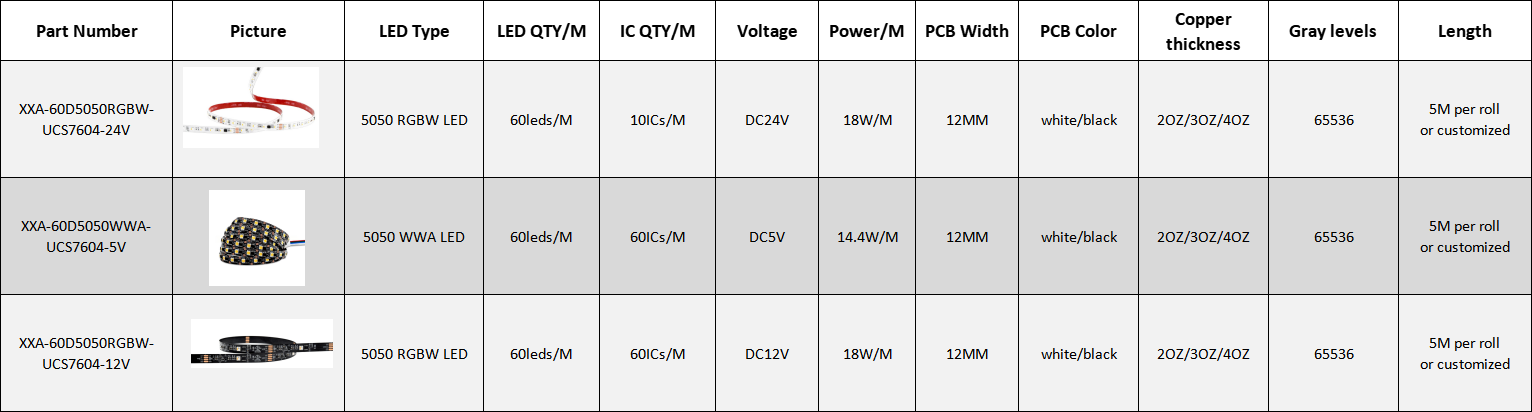

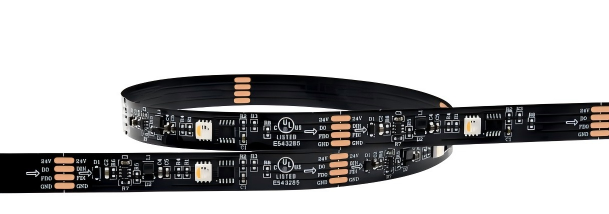

1. We offer three UCS7604 LED strip styles: standard 24V (cuttable every 6 LEDs), single-point control 5V WWA, and 24V RGBW;

2. The “single-point control” version utilizes the SPI protocol, enabling each LED to be independently and precisely controlled for color and brightness. This high-speed, stable technology is ideal for creating complex dynamic lighting effects, making it perfect for applications demanding high light efficiency and real-time responsiveness;

3. The UCS7604 has a 1600Hz PWM frequency and an 800kbps data rate;

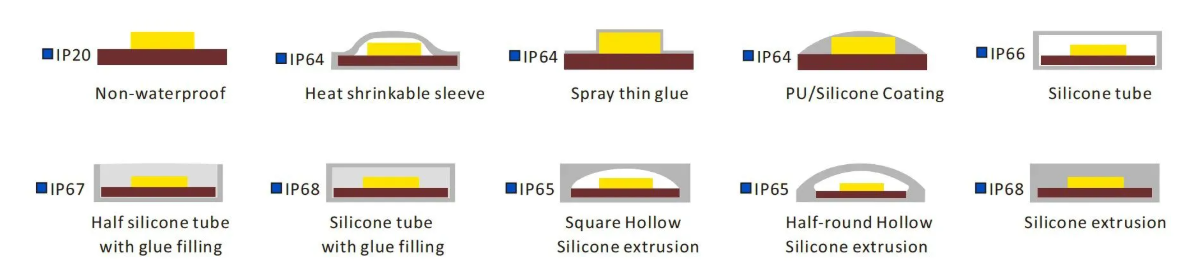

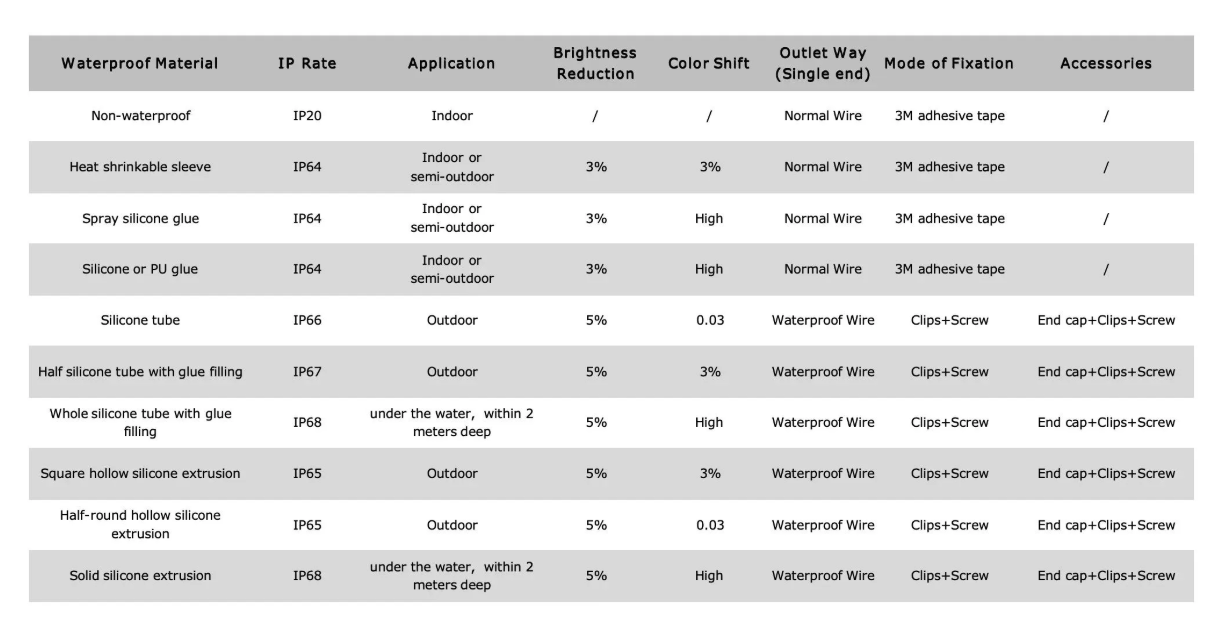

4. Waterproof ratings: IP20, IP65, IP67, and IP68, making it ideal for outdoor use.

UCS7904 WWA RGBW Flex led strips are suitable for automotive and bicycle trim, border or contour lighting, and widely used in home décor, hotels, clubs, shopping malls, architectural decorative lighting, boutique ambient lighting; widely applied in backlighting, concealed lighting, aisle lettering lighting, emergency and safety lighting, advertising signage lighting; decorative lighting for festivals, events, and exhibitions,etc.
