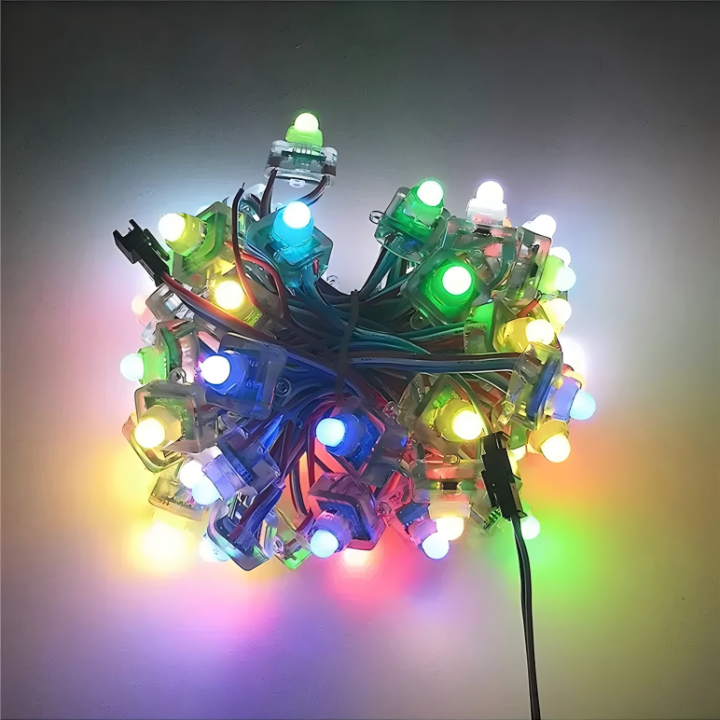

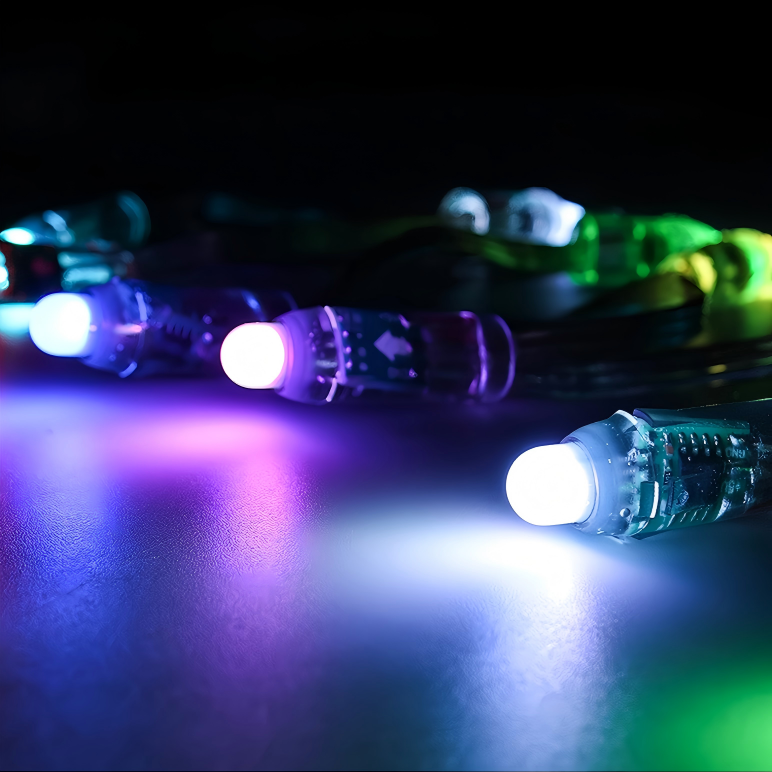

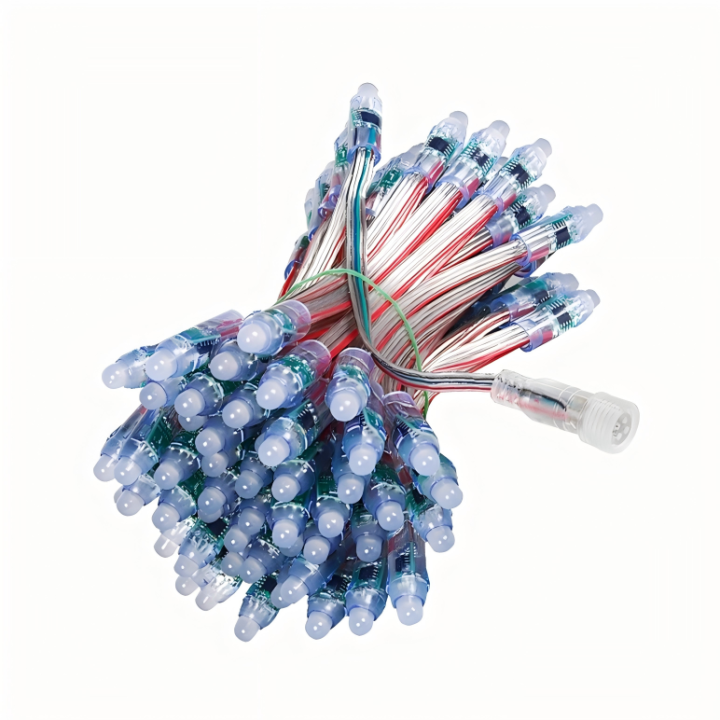

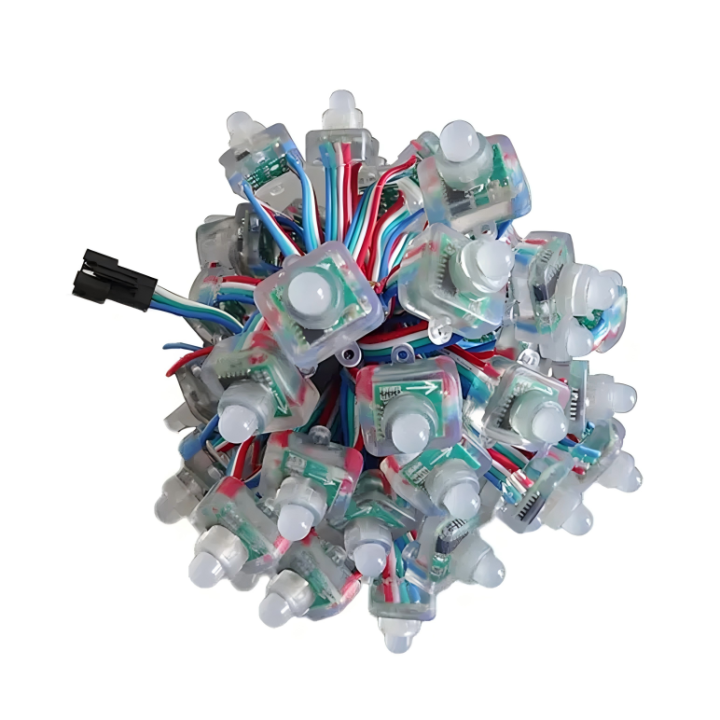

DC5V/12V/24V SPI DMX waterproof IP68 digital full color 12mm round square RGB LED Light Strings (XXA-12)
DC5V/12V/24V SPI DMX waterproof IP68 digital full color 12mm round square RGB LED Light Strings
Introducing our 12mm pixel RGB LED Light Strings! With separate control via an F8 diode and IC, these lights offer high brightness, low power consumption, and a long lifespan. Available in IP65 (indoor) and IP67 (outdoor) waterproof ratings, they install easily on aluminum profiles or screws. Powered by DC5V/12V/24V, they feature versatile connectors for seamless linking. Create stunning dynamic effects with colorful designs and various installation methods.
Description for 12mm pixel RGB LED Light Strings:

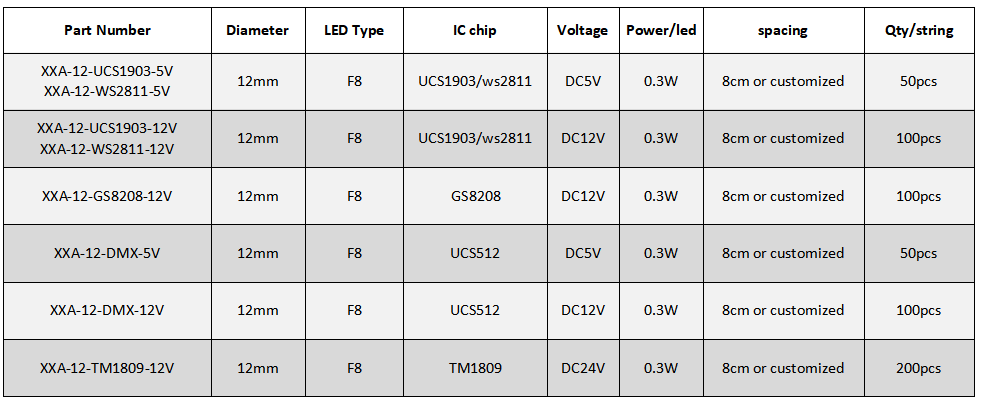

1.Control : Seperate control, 1 PCS F8 diodo and 1IC (UCS1903/WS2811/GS8208/UCS512/TM1809)
2. Waterproof : IP65 with JST non-waterptoof connector (indoor use), IP67 with PVC connector (outdoor use).
3. Installation: Aluminum profile or screw , the best drill holes of profile about 12mm.
4. Power supply: Low power and consume, DC5V/DC12V/DC24V 0.3W. Do not higher than DC5V/12V/24V or will burn the led.
5. Connectors : 3PIN/4PIN/5PIN JST female/male connector, also can be waterproof connector, DAT, DC5V/12V/24V+, GND-, each led pixel is separate, you can easily connect them one by one through the male female connector.
6. It has the characteristics of high brightness, low power consumption, long life, low voltage, low attenuation and colorful
7. Different installation methods can constitute different dynamic effects of different color characteristics and designs.
Learn more about this 12mm pixel string lights, please check our below blog:
Dimensions (mm):

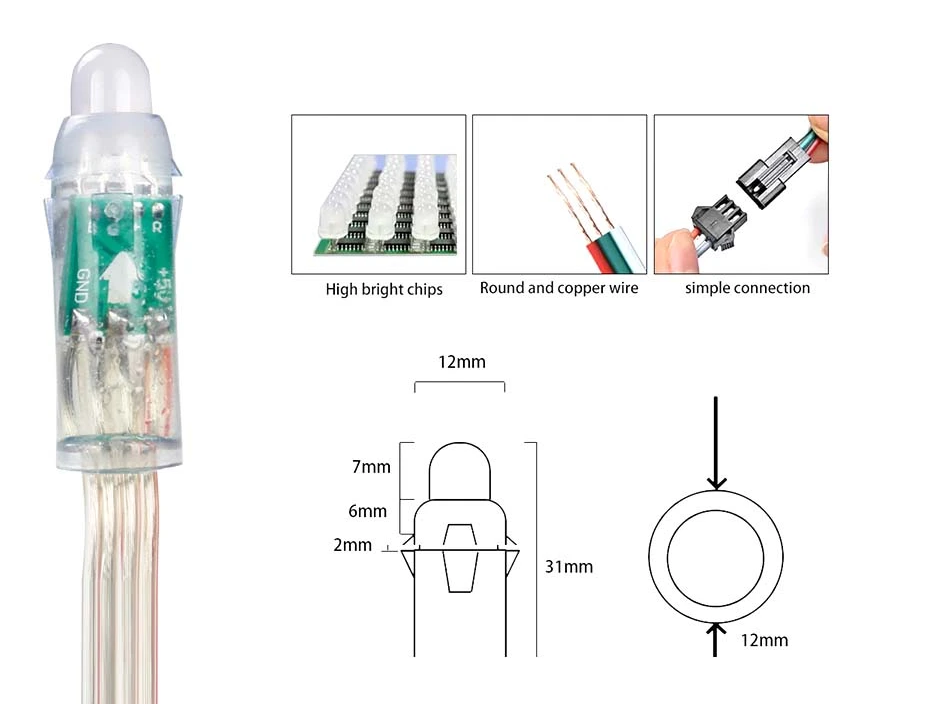

12mm round bullet pixel:

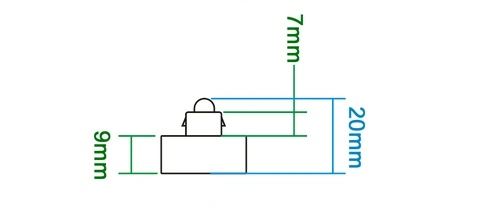

12mm square pixel:

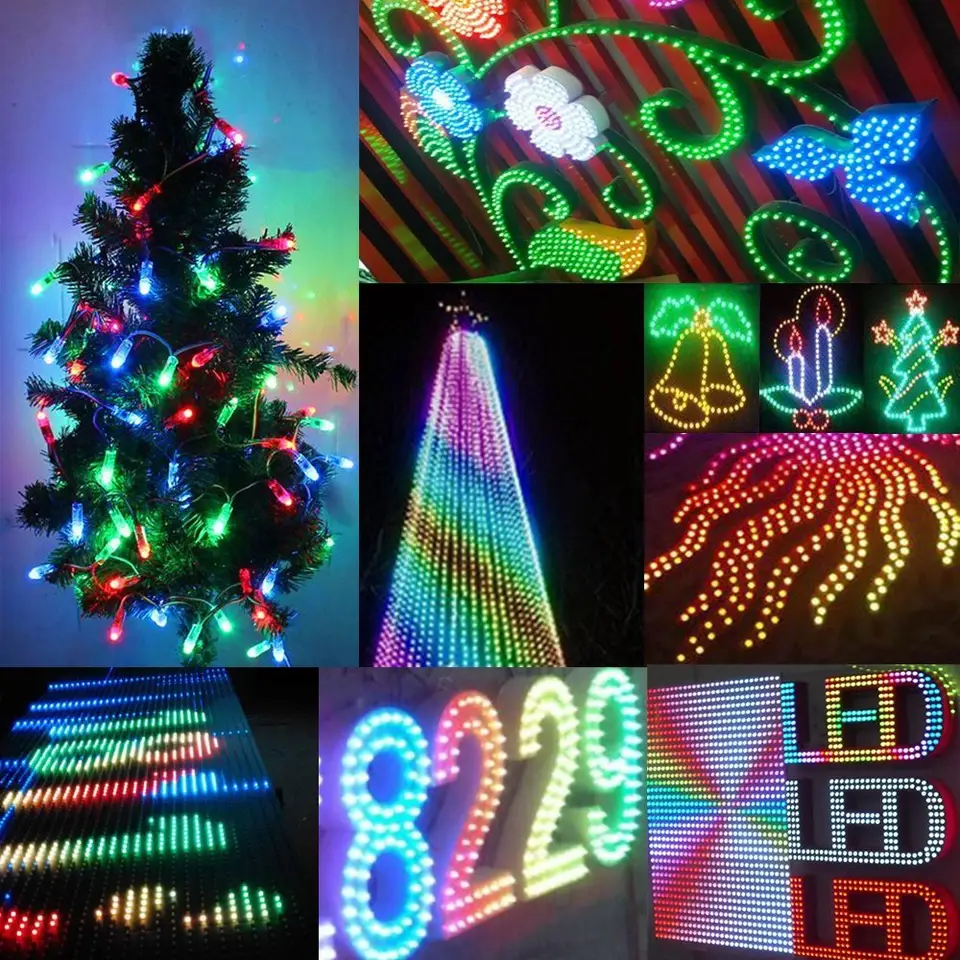

Application for pixel RGB LED Light Strings:
