What's COB LED Strip

COB(Chips on Board) means that the chip is directly packaged on the PCB. COB LED strips is a series of led strip which encapsulates the chip on the flexible board, and then a layer of packaging glue mixed with phosphor powder is directly dropped on the surface of the chip. COB LED Strips emitted by the chip is refracted, reflected in the encapsulation colloid, and interacts with the phosphor powder. The colloid evenly emits light of different colors and color temperatures.

Full Range COB LED Strips

We offer a full range of COB LED strips, including single-color, dual-color dimmable, RGB, RGBW, and all RGB color series, and support customization services with no minimum order quantity. 2-3 year warranty.

Xuanan Lighting: High-Performance SPI Addressable Digital Pixel COB LED Strips

Posted on Sunday, 07 December 2025

SPI Addressable Digital Pixel COB LED Strips

Xuanan Lighting: High-Performance SPI Addressable Digital Pixel COB LED StripsXuanan Lighting offers high-performance addressable digital pixel COB LED strips, favored in modern lighting and decoratio...

COB LED Strips: The Future of Seamless Lighting

Posted on Saturday, 08 November 2025

COB LED Strips

If you’re looking for the next leap in LED strip technology, look no further than COB (Chip-on-Board) LED strips. They represent a significant evolution from the traditional SMD (Surface-Mounted Devic...

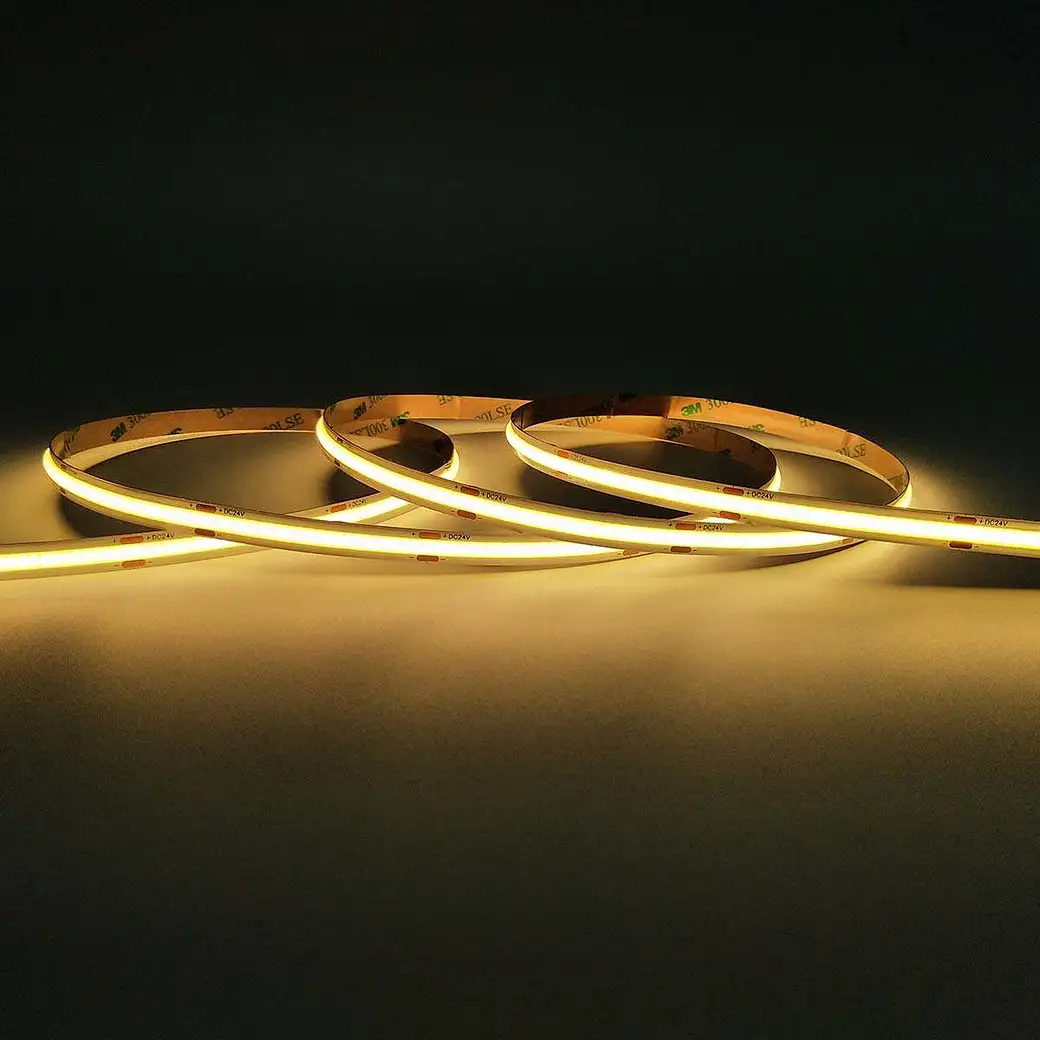

480Chips/M White COB LED Strips

LED QTY: 480LEDs/M

Voltage: DC12V/24V

PCB Width: 8MM

Cutting Length: 2.5cm (12V)/ 5cm(24V)

CRI: 90+

CCT: 2700K/3000K/3500K/4000K/6000K (customized)

Brightness: 1000lm/M

Length: 5m/roll (customized)

IP rating: IP20/65/66/68

Power: 10W/M

Lifespan: 30000hrs

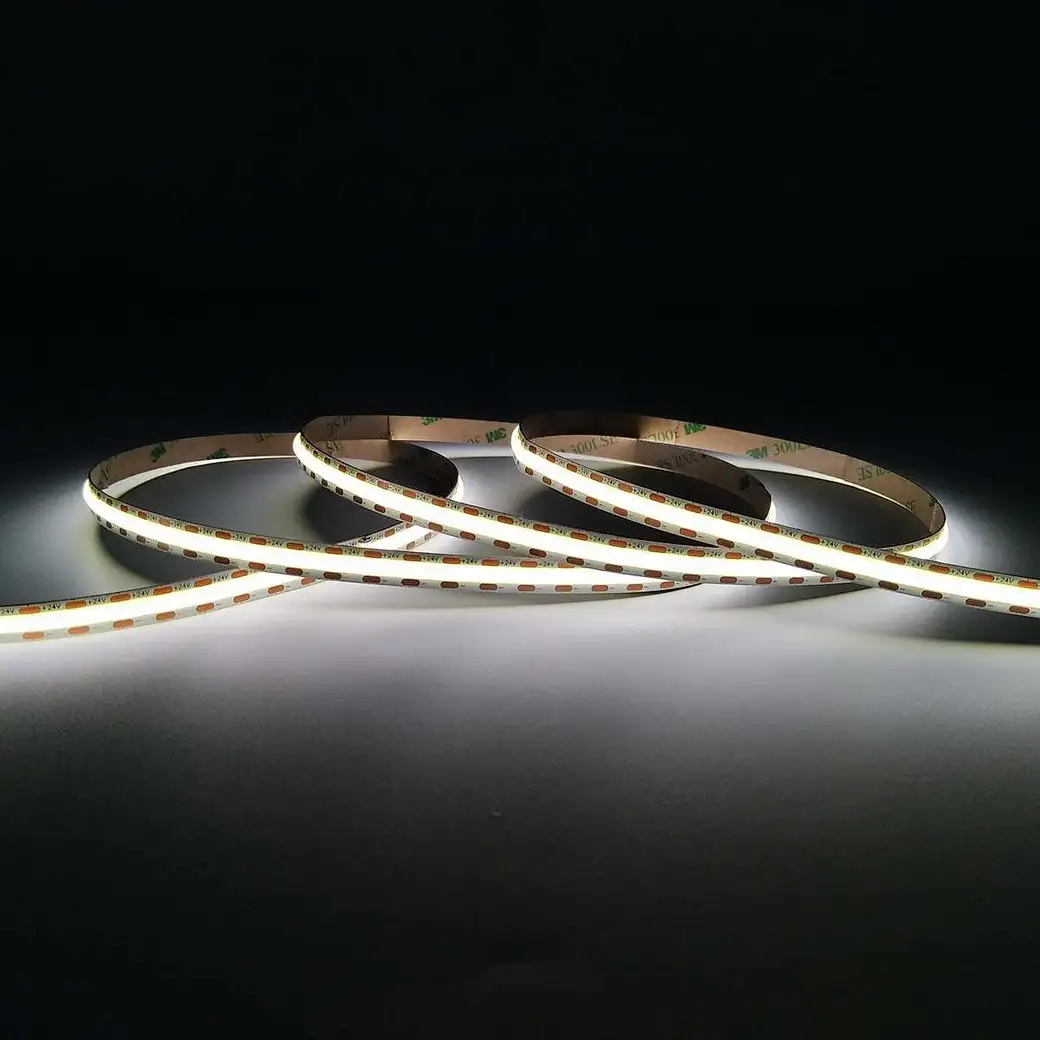

Free Cut 480Chips/M White COB LED Strips

LED QTY: 480LEDs/M

Voltage: DC12V/24V

PCB Width: 8MM

Cutting Length: 2.5cm (12V)/ 5cm(24V)

CRI: 90+

CCT: 2700K/3000K/3500K/4000K/6000K (customized)

Brightness: 900lm/M

Length: 5m/roll (customized)

IP rating: IP20/65/66/68

Power: 9W/M

Lifespan: 30000hrs

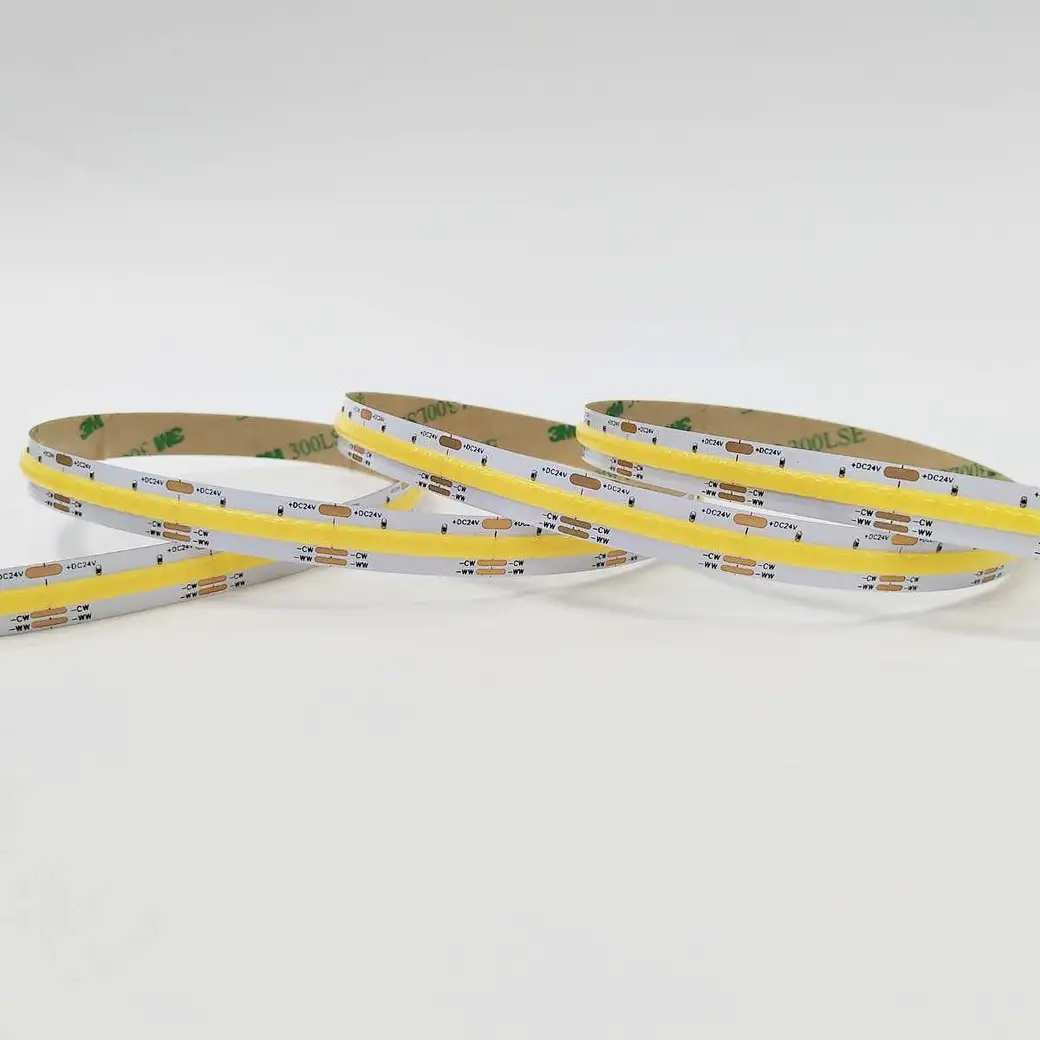

640Chips/M CCT Adjustable COB LED Strips

LED QTY: 640LEDs/M

Voltage: DC24V

PCB Width: 10MM

Cutting Length: 5cm

CRI: 90+

CCT: 3000K-6000K (customized)

Brightness: 2200lm/M

Length: 5m/roll (customized)

IP rating: IP20/65/66/68

Power: 22W/M

Lifespan: 30000hrs

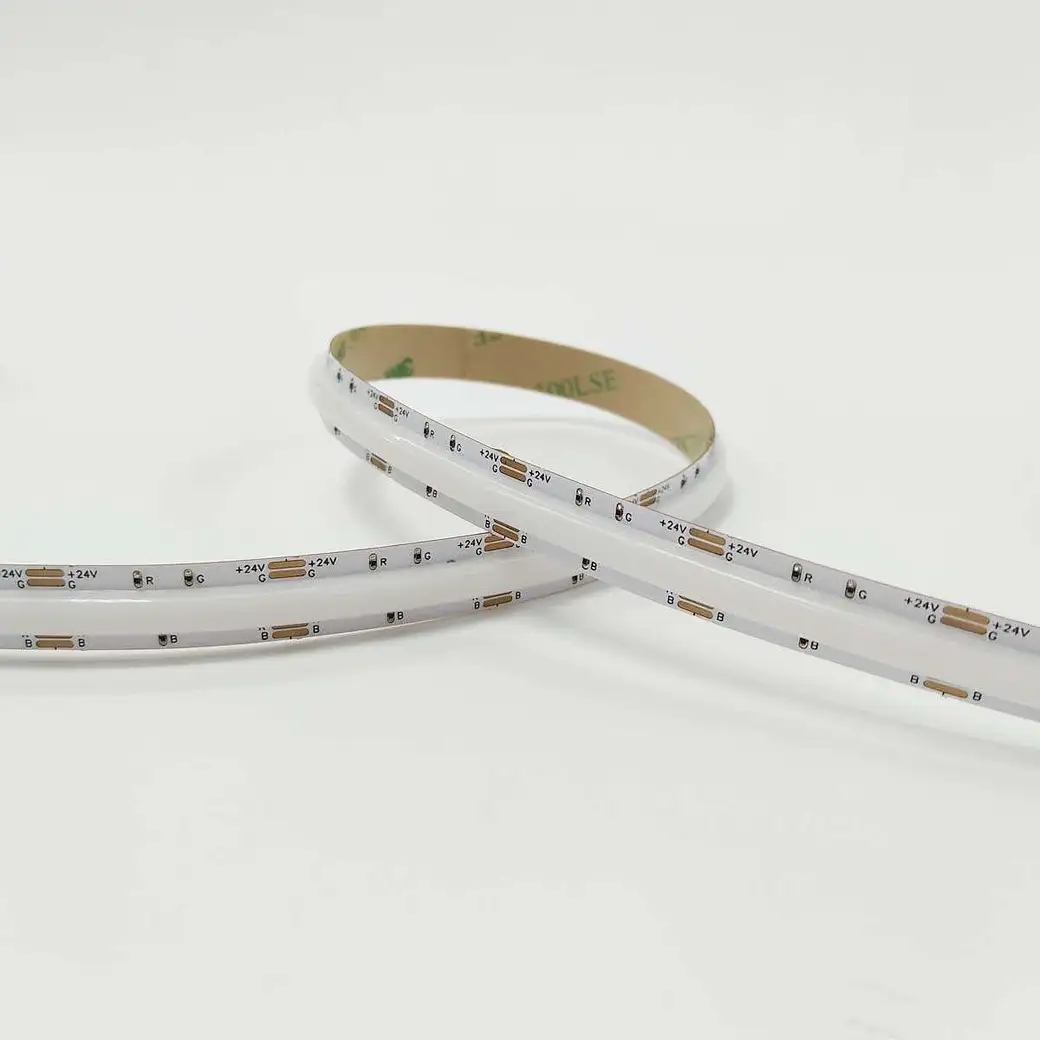

840Chips/M RGB COB LED Strips

LED QTY: 840LEDs/M

Voltage: DC12V/24V

PCB Width: 10MM

Cutting Length: 2.5cm (12V)/ 5cm(24V)

Power: 15W/M

Brightness: 450lm/M

Emitting color: RGB

Length: 5m/roll (customized)

IP rating: IP20/65/66/68

Beam Angle: 180°

Lifespan: 30000hrs

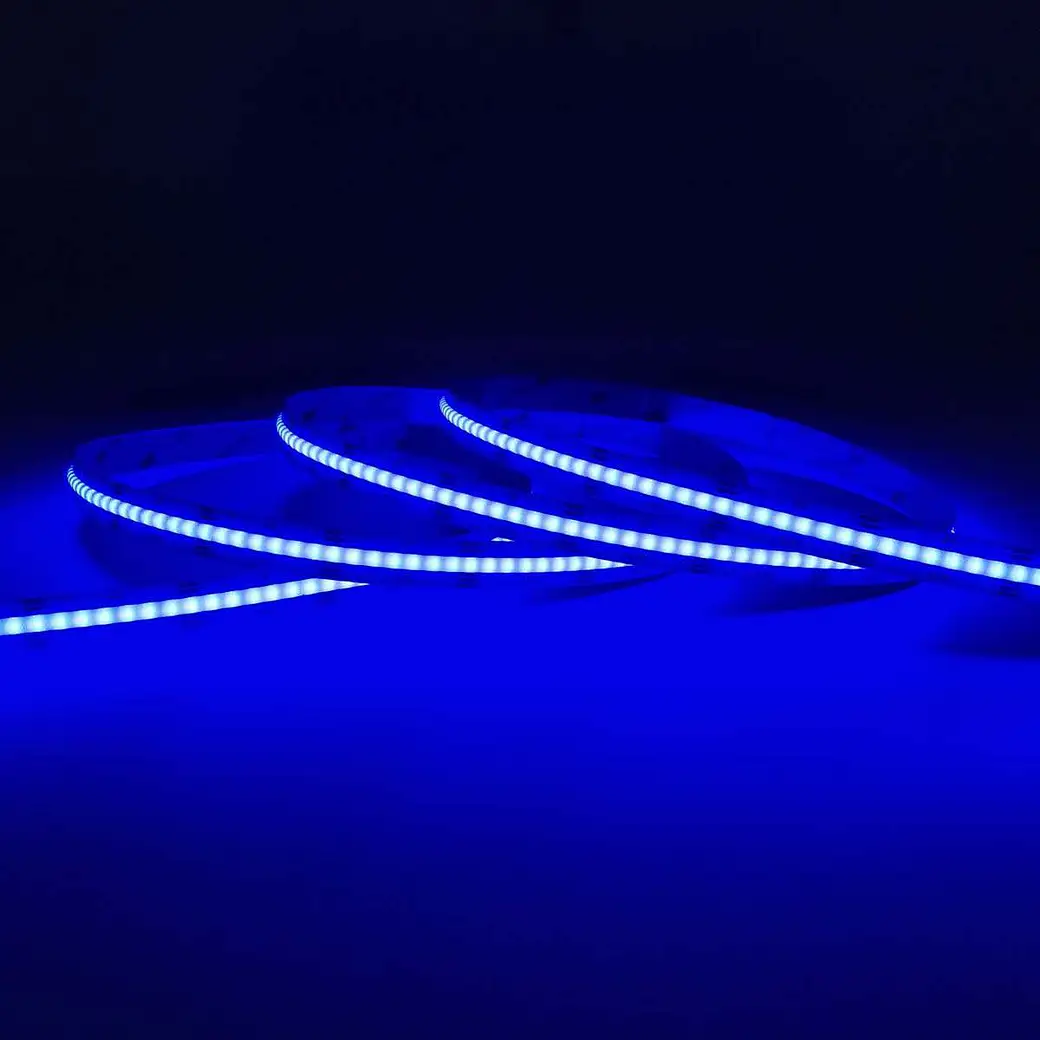

896Chips/M RGBW COB LED Strips

LED QTY: 896LEDs/M

Voltage: DC24V

PCB Width: 10MM

Cutting Length: 3.13cm

Power: 20W/M

Brightness: 800lm/M

Emitting color: RGBW

Length: 5m/roll (customized)

IP rating: IP20/65/66/68

Beam Angle: 180°

Lifespan: 30000hrs

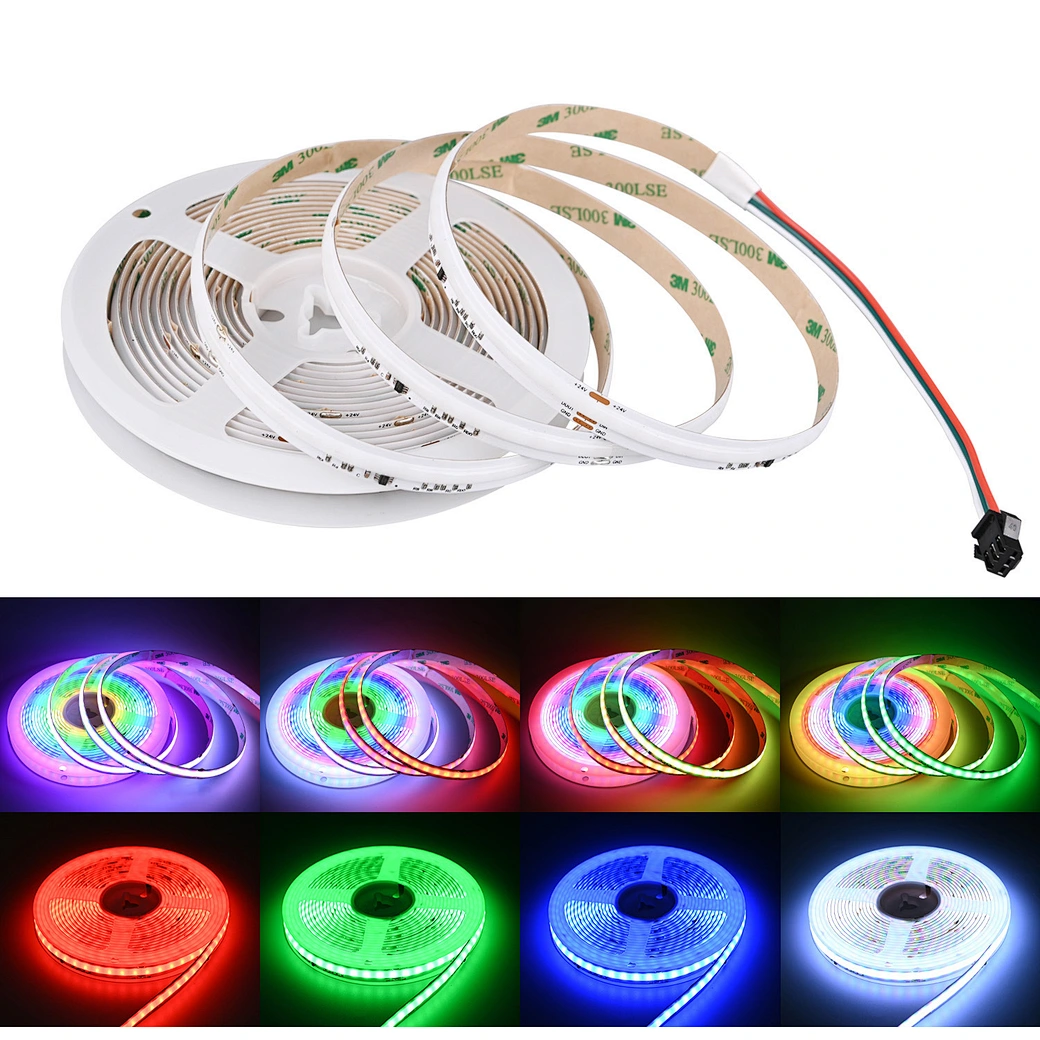

Addressable COB LED Strip Series

LED QTY: 360LEDs/M,576LEDs/M,420LEDs/M,720LEDs/M,840LEDs/M

Voltage: DC24V

Cutting Length: 83.33cm,83.33cm,100mm,50mm,100mm

Power: 12W/M,24W/M,13.5W/M,21W/M,16W/M,

PCB Width: 10MM/10MM/10MM/12MM/12MM

Length: 5m/roll (customized)

IP rating: IP20/65/66/68

Beam Angle: 180°

Lifespan: 30000hrs

LED Sheets, SMD LED strips, Neon LED strips, COB LED strips, Pixel Lights, LED chain lights, Rotomolded Lights, and Home Smart Lights,etc.
