Flexible LED sheets are embedded with numerous LED chips that work together to emit uniform light. Unlike rigid panels, these sheets can be cut into different shapes, bent to fit curved surfaces, and spliced together to cover wide areas — making them an ideal solution for irregular and custom lighting applications.

This article explains how to work with flexible LED sheets: cutting, bending, connecting, powering, and installing them correctly.

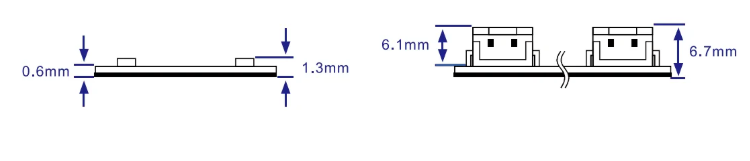

How Thin Are Flexible LED Sheets?

People often ask: "Are flexible LED sheets really as thin as paper?"

The sheet feels like poster board — slightly thicker than paper but still highly flexible. If you mount connectors, the overall thickness increases to about 6.7mm.

Can You Cut These Sheets?

Yes. The major strength of LED lighting sheets is that they are cuttable.

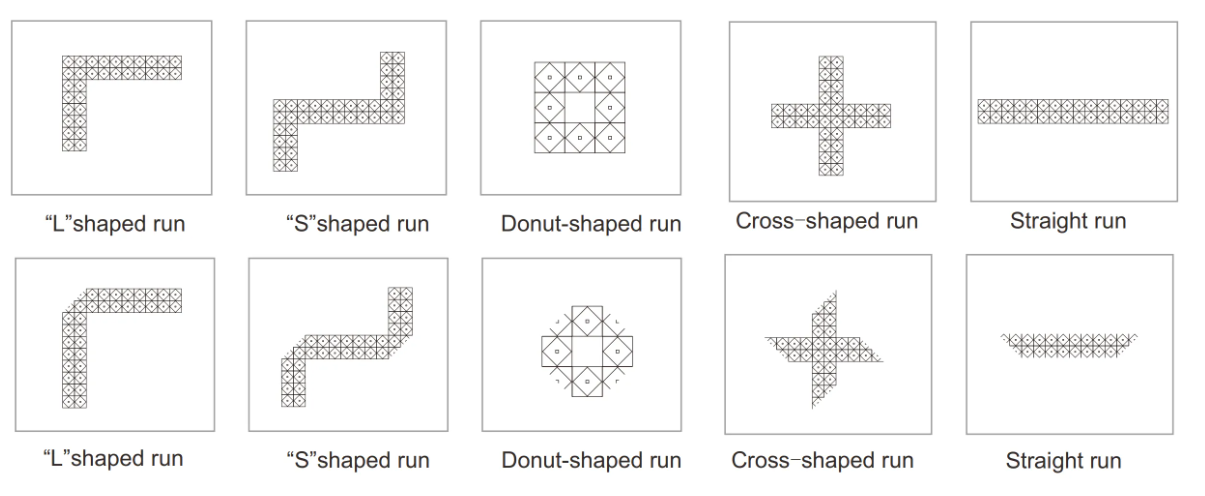

Black horizontal, vertical, and even 45° diagonal cutting lines are marked on the sheets to guide your cuts.

Important: After cutting, apply RTV silicone sealant or conformal coating to the cut edge if it will contact a conductive surface.

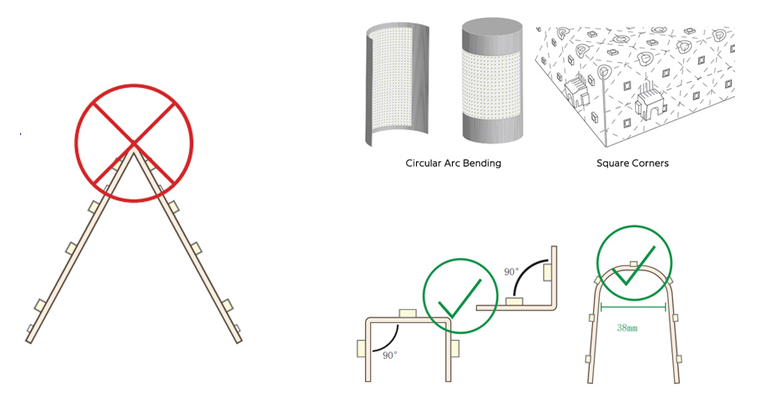

Can You Bend or Fold LED Sheets?

Yes. Flexible LED sheets can be bent into circular shapes, wavy forms, and even 90° hard bends — as long as you follow the guidelines.

Bending Type	Acceptable?	Guideline
Sharp angles	❌ No	May damage the circuit board
90° hard bends	✅ Yes	Must follow black cutting lines
Soft bends (curves)	✅ Yes	No special requirements
Square corners	✅ Yes	Fit corners to cutting lines, do not fold randomly

For square corners, ensure the corner edges align with the black cutting lines on the sheet — do not randomly fold.

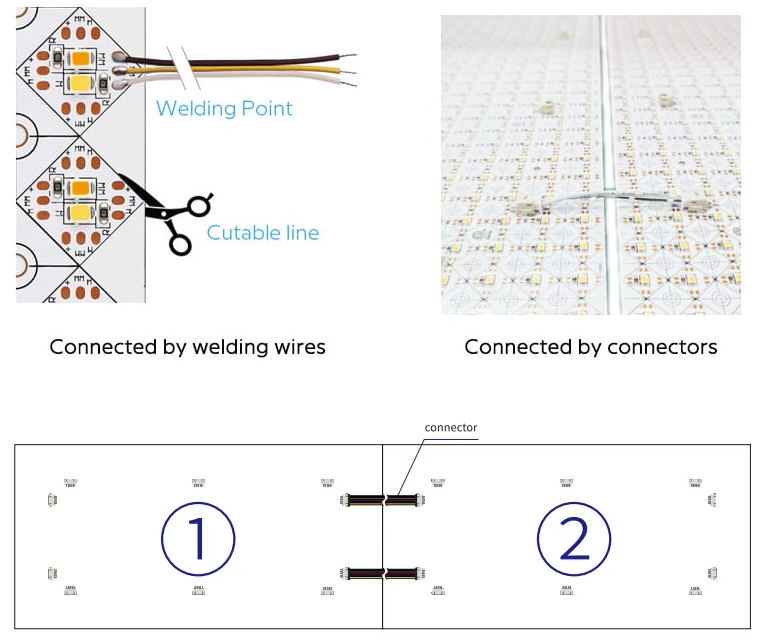

How to Connect Different Pieces of Sheet LED?

Flexible LED sheets can be connected in two primary ways: by wire (soldering) or by connectors.

Method 1: Soldering with Wire

Each LED has pinpoints on the top, bottom, left, and right sides for you to choose from.

Note: A single LED sheet consumes approximately 300W. We offer soldering service if needed.

Method 2: Plug-and-Play Connectors

Connectors are lightweight, fast, and removable.

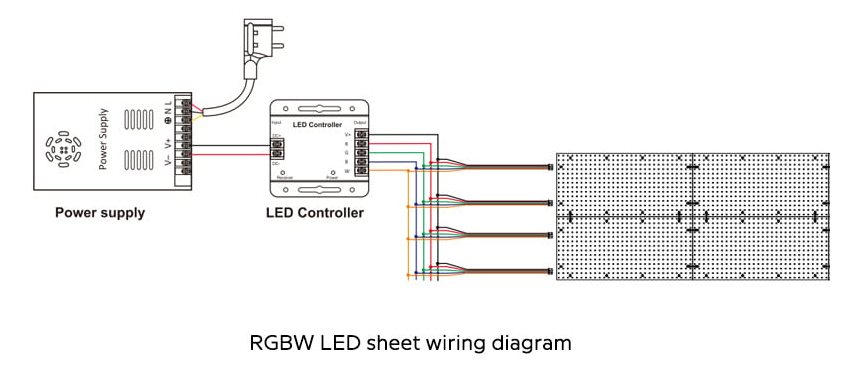

How to Choose the Right Power Supply

Principle: The power supply voltage must match the sheet voltage. The driver wattage should be 1.2 times the total wattage of all connected sheets.

Formula:

Driver wattage = Total sheet wattage × 1.2

Example:

4 pieces of 24V 60W LED sheets
Total wattage: 4 × 60W = 240W
Required driver wattage: 240W × 1.2 = 288W (or slightly higher)

The driver voltage must match the sheet voltage (e.g., 24V sheets require a 24V power supply).

How to Install LED Light Sheets

Flexible LED sheets come with adhesive backing for easy installation.

Step-by-Step Guide:

No nails, no screws — installation takes minutes.

What Are LED Sheet Lights Used For?

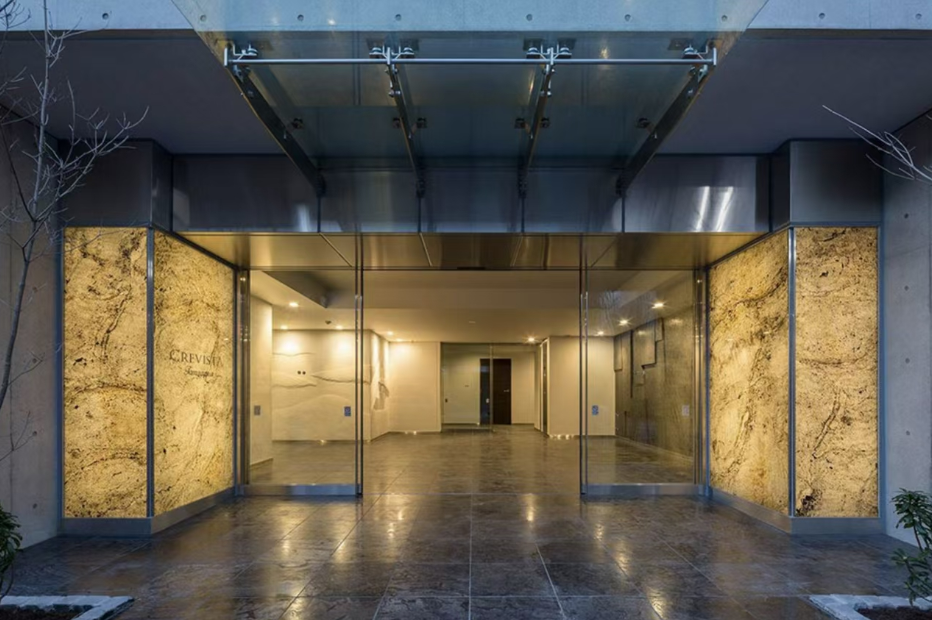

1. Stone Backlighting (Marble, Onyx, Glass, Acrylic)

Place flexible LED sheets underneath marble or onyx to emit a quiet, artistic glow through the stone's natural veins — creating a luxurious and elegant ambiance in:

High-class restaurants
Hotels
Bars and clubs
Retail stores

2. Signage Lighting

Cut sheets into letters or shapes, place them into sign housings, and cover with diffusers for uniform illumination.

Note: Standard LED sheets are not waterproof and are intended for indoor use only.

3. Large-Scale Commercial Ceiling Lighting

Modular LED sheets can be easily connected to cover wide areas — ideal for:

Hotel lobbies
Shopping malls
Warehouses
Garages

Sheets are fastened to the ceiling and covered by translucent flat panels, providing continuous and seamless illumination.

4. Additional Applications

Summary of Key Technical Points

Topic	Key Takeaway
Thickness	1.3mm (including LEDs); ~6.7mm with connectors
Cutting	Use scissors along black lines; smallest unit = 1 LED
Bending	90° hard bends and soft bends allowed; sharp angles not allowed
Connection	Solder (20AWG/18AWG) or plug-and-play connectors
Power supply	Match voltage; wattage = total sheet wattage × 1.2
Installation	Adhesive backing — peel and stick
Waterproof	Not waterproof — indoor use only

Final Thoughts

Flexible LED sheets are a powerful tool for designers and installers working with irregular surfaces, custom shapes, or backlighting applications. By understanding how to cut, bend, connect, and power them correctly, you can achieve professional results — from elegant marble backlighting to seamless commercial ceilings.
